Recording The Current Voltage Characteristics Of A Cds Photoresistor. Principles photoconductivity is the effect of increasing electrical It is more or less proportional to the amount of incident light when vout < voc.

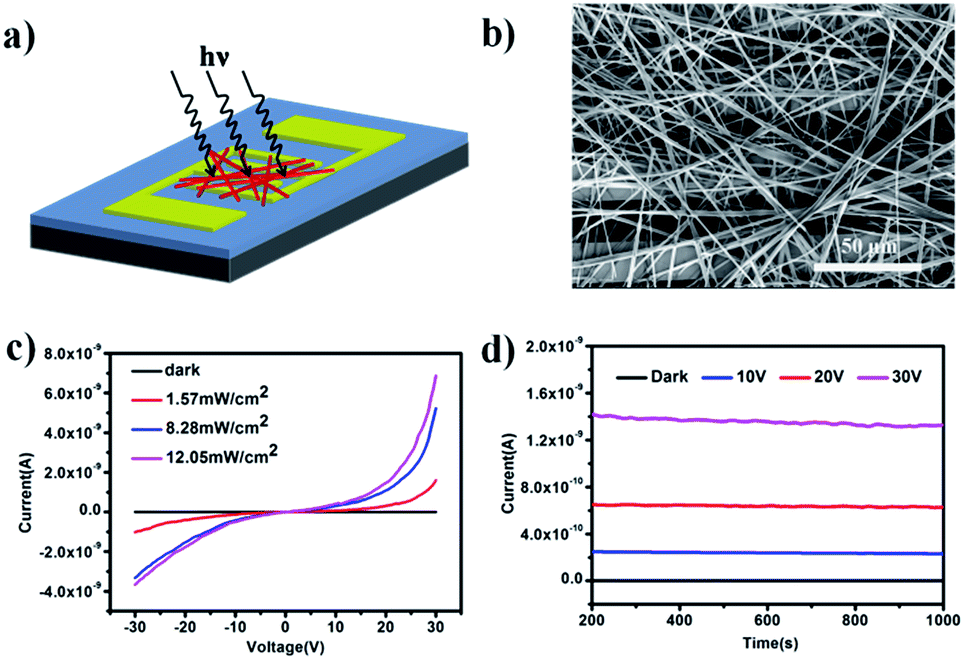

Efficient nonhalogenated solvent for the templatefree from pubs.rsc.org

Photoresistors, also known as light dependent resistors (ldr), are light sensitive devices most often used to indicate the presence or absence of light, or to measure the light intensity. This photoresistor specification details the wavelength of maximum sensitivity. They are also called as photoconductors, photoconductive cells or simply photocells.

Source: vctec.co.kr

The photoresistor is made of cadmium sulphide tape, a semiconductor. The cds photoresistor behaves like an ohmic resistance that depends on the irradiance.

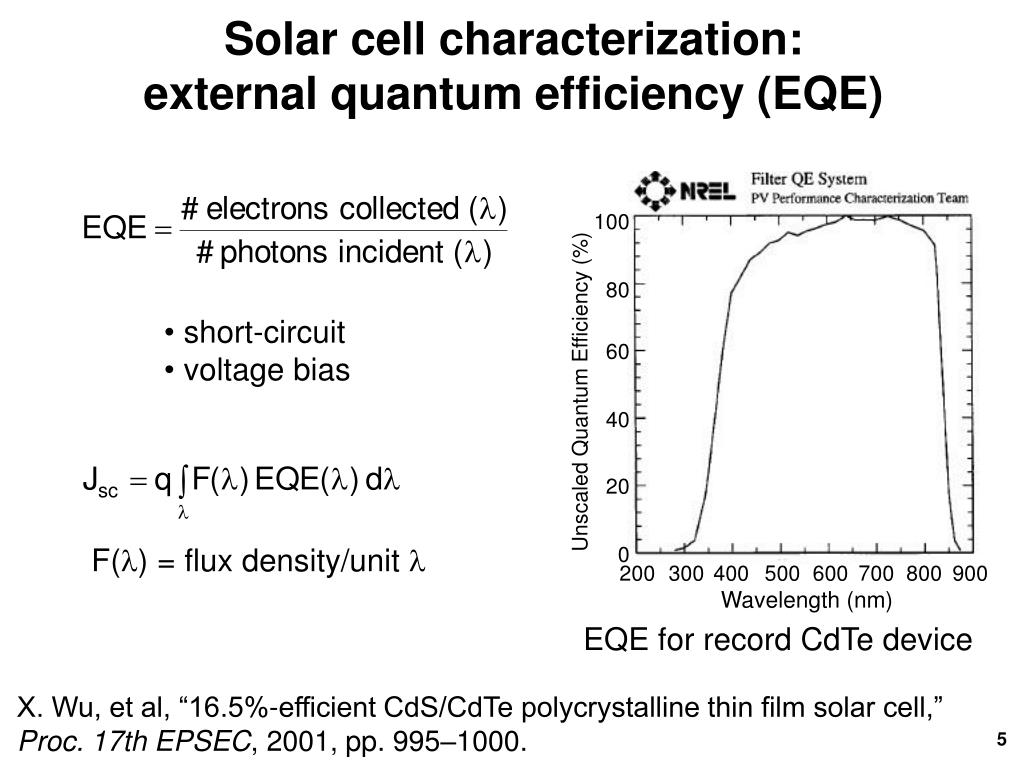

Source: www.slideserve.com

Photoresistor is the combination of two words photon which means light particles and resistor. This photoresistor specification details the wavelength of maximum sensitivity.

Source: www.researchgate.net

As the photoresistor’s resistance decreases due to increasing light intensity, the voltage at the base increases due the voltage divider formed by r1 and the photoresistor. Small, cheap and easily available.

Source: www.manual-buddy.com

It can also be compressed logarithmically relative to the amount of incident light when v out is near v oc. As the photoresistor’s resistance decreases due to increasing light intensity, the voltage at the base increases due the voltage divider formed by r1 and the photoresistor.

Source: www.researchgate.net

Light sensor (photoresistor) with arduino in tinkercad: Curves may be provided for the overall response in some instances.

Source: www.lightchec.uzh.ch

Particularly as the device is semiconductor based, the maximum operating voltage must be observed. Can be used to sense light.

Source: www.slideserve.com

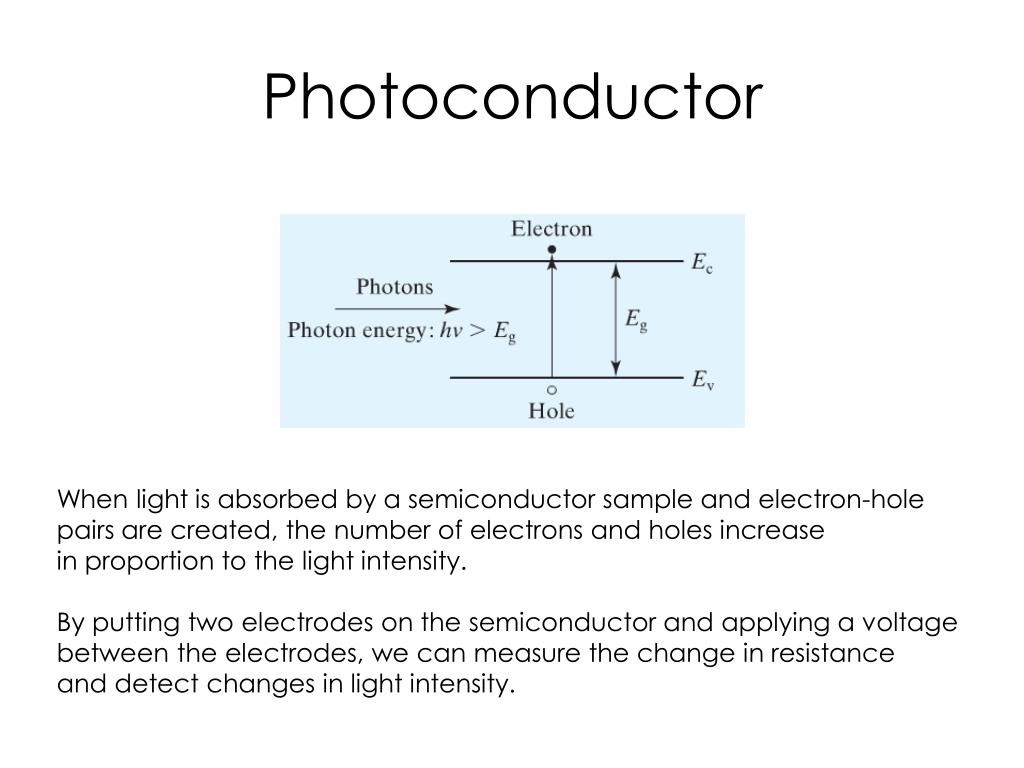

More technical details and sample circuits can be found at ldr datasheet given below. When photons hit the tapes, electrons can pass through the semiconductor.

Source: www.researchgate.net

The cds photoresistor behaves like an ohmic resistance that depends on the irradiance. Here the photoresistor controls the amount of current flowing into the base of the transistor, which in turn controls the collector current of the transistor, thus controlling the current through the led.

What Happens When Light Radiation Falls On Insulating.

Ldr can sense the light intensity, due to this property it is mostly used in light sensing circuits. Easy to use on breadboard or perf board. Curves may be provided for the overall response in some instances.

Here The Photoresistor Controls The Amount Of Current Flowing Into The Base Of The Transistor, Which In Turn Controls The Collector Current Of The Transistor, Thus Controlling The Current Through The Led.

Light sensor (photoresistor) with arduino in tinkercad: In case of cds crystal, the exponent between 0.92 al low level and 0.58 at high level of illumination. In the dark, their resistance is very high, sometimes up to 1 mω, but when the ldr sensor is exposed to light, the resistance drops dramatically, even down to a.

As The Photoresistor’s Resistance Decreases Due To Increasing Light Intensity, The Voltage At The Base Increases Due The Voltage Divider Formed By R1 And The Photoresistor.

Photoresistor is the combination of two words photon which means light particles and resistor. Easy to use with microcontrollers or even with normal digital/analog ic. Particularly as the device is semiconductor based, the maximum operating voltage must be observed.

This Product Is Classified As A Dangerous Good And Is Not Available For Online Purchase.

Can be used to sense light. The cds photoresistor behaves like an ohmic resistance that depends on the irradiance. This photoresistor specification details the wavelength of maximum sensitivity.

Current Produced By A Photodiode Without Bias Into A Voltage.

This will give us a prelinary value to compare against in the loop } void loop() { //take a reading using analogread() on sensor pin and store it in lightval lightval = analogread(sensorpin); Photoresistors, also known as light dependent resistors (ldr), are light sensitive devices most often used to indicate the presence or absence of light, or to measure the light intensity. It can also be compressed logarithmically relative to the amount of incident light when v out is near v oc.
